SH-WB-20CDR 칠러-냉동 순환 수조 냉각기

chiller(-25℃) 모델 , Circulating Pump 장착

Cover Gasket 장착으로 부동액 증발 방지

StainlessSteel Coil 장착

특허등록제품(장비 외부 결빙 현상 방지)

회전증발농축기 20L 용

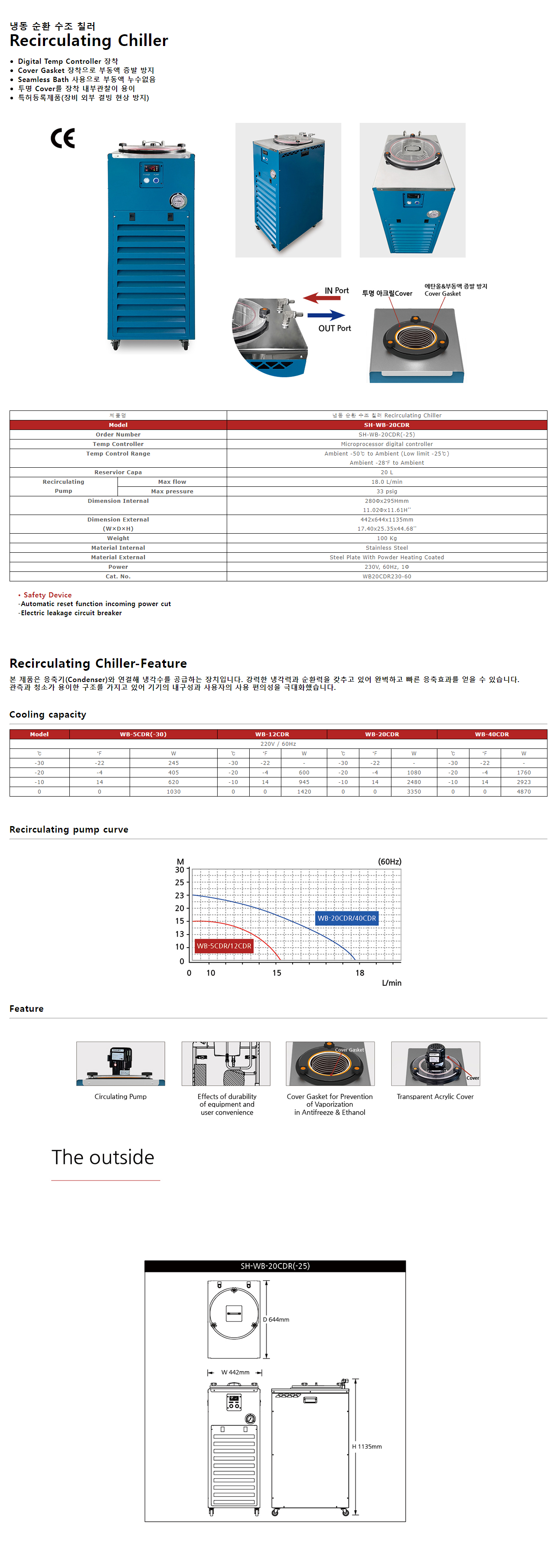

  • 제품정보 (특징)

     냉동 순환 수조 칠러

    칠러, 냉동순환수조 펌프 그래프
    제품명냉동 순환 수조 칠러 Recirculating Chiller
    ModelSH-WB-20CDR
    Order NumberSH-WB-20CDR(-25)
    Temp ControllerMicroprocessor digital controller
    Temp Control RangeAmbient -50℃ to Ambient (Low limit -25℃) (Only Cooling)
    Ambient -28℉ to Ambient
    Reservoir Capa
    		20 L
    Recirculating
    Pump    		Max flow23.0 L/min (tested with distilled water at 20℃)
    Max Head
    		9 meter (tested with distilled water at 20℃)
    Max pressure12.8 psig (tested with distilled water at 20℃)
    Dimension Internal1/2" Pt Female connector
    Dimension Internal280Φx295Hmm
    11.02Φx11.61H''
    Dimension External
    (W×D×H)    		442x644x1135mm
    17.40x25.35x44.68''
    Weight100 Kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Noise (dB)
    		58
    ＊소음도 별 예시 기준 : 40dB이하-도서관 / 50dB이하-사무실 / 60dB이하-일반적인 대화소리
    Power230V, 60Hz, 1Φ
    Cat. No.WB20CDR230-60
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Electric leakage circuit breaker




    칠러, 냉동순환수조, SH-WB-20CDR, 냉각기 외형도
