SH-WB-12CDR 칠러-냉동 순환 수조 냉각기

chiller(-25℃) 모델 , Circulating Pump 장착

Cover Gasket 장착으로 부동액 증발 방지

Stainless Steel Coil 장착

특허등록제품(장비 외부 결빙 현상 방지)

회전증발농축기 10L 용

  • 제품정보 (특징)


    칠러, 냉동순환수조

    제품명냉동 순환 수조 칠러 Recirculating Chiller
    ModelSH-WB-12CDR
    Order NumberSH-WB-12CDR(-25)
    Temp ControllerMicroprocessor digital controller
    Temp Control RangeAmbient -50℃ to Ambient (Low limit -25℃) (Only Cooling)
    Ambient -28℉ to Ambient
    Reservoir Capa
    		12 L
    Recirculating
    Pump    		Max flow23L/min (tested with distilled water at 20℃)
    Max Head
    		9 meter (tested with distilled water at 20℃)
    Max pressure12.8 psig (tested with distilled water at 20℃)
    In/out port
    		1/2" Pt Female connector
    Dimension Internal
    (Φ×H)    		220Φx250Hmm
    8.66Φx9.84H''
    Dimension External
    (W×D×H)    		482x614x811mm
    18.98x24.17x31.93''
    Weight80 Kg
    Material InternalStainless Steel
    Material ExternalSteel Plate With Powder Heating Coated
    Noise (dB)55
    ＊소음도 별 예시 기준 : 40dB이하-도서관 / 50dB이하-사무실 / 60dB이하-일반적인 대화소리
    Power230V, 60Hz, 1Φ
    Cat. No.WB12CDR230-60
      • Safety Device
    • -Automatic reset function incoming power cut
    • -Electric leakage circuit breaker

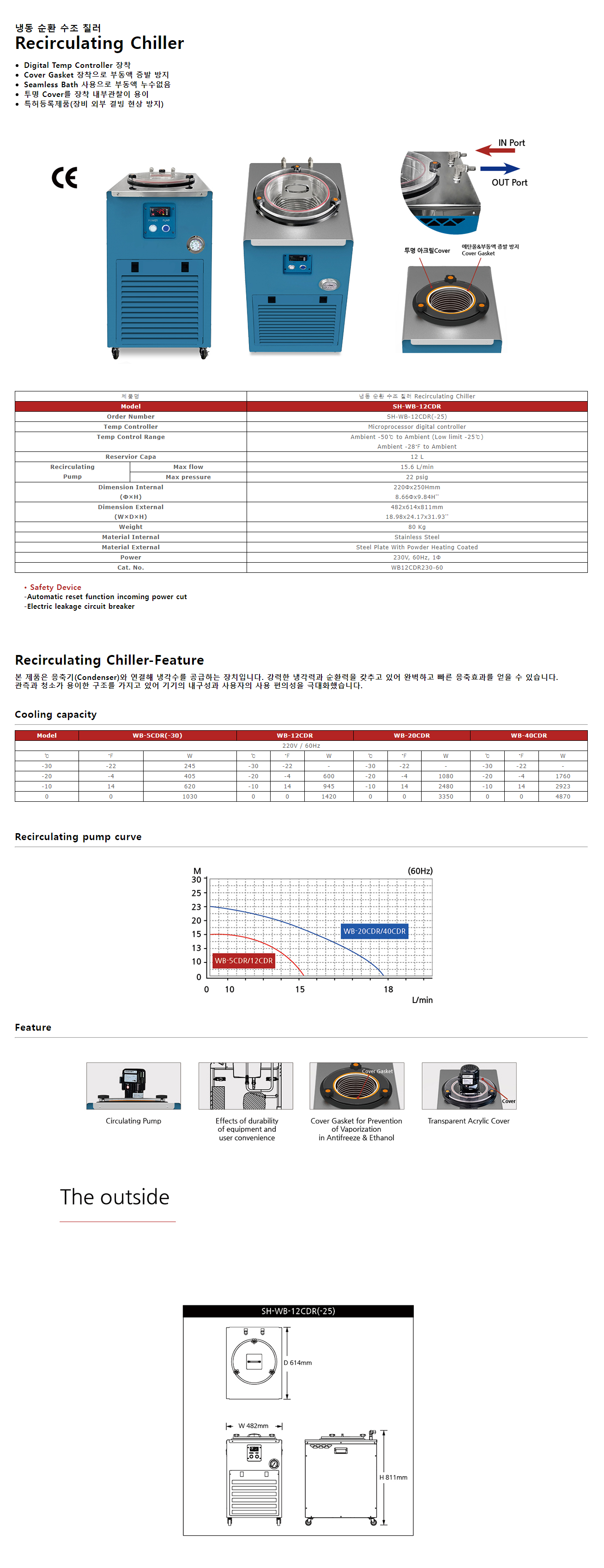

    칠러, 냉동순환수조, SH-WB-12CDR, 냉각기 외형도
